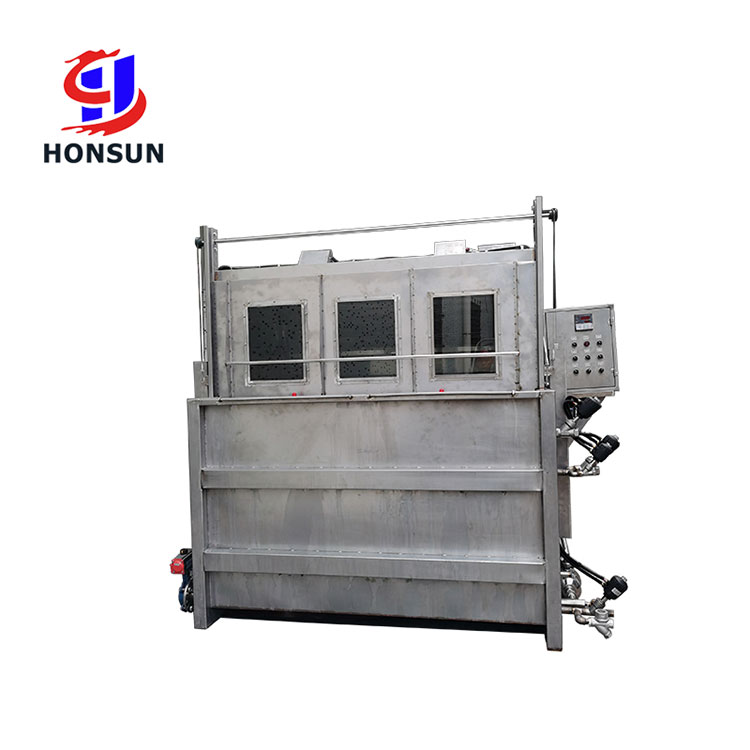

Rope Dyeing Machine

Our China-based rope dyeing machine factory, a 10-year industry leader, crafts bespoke and standard dyeing equipment to optimize your production line. Utilizing advanced tech, our efficient machines boost output while cutting costs.

Send Inquiry

Product Description

The rope dyeing machine adopts continuous rope dyeing technology and operates under normal pressure. It is particularly suitable for fine dyeing of materials such as cotton and nylon. Its simple design enhances its adaptability to industrial environments. Its streamlined structure and economical cost make it an ideal choice for manufacturers pursuing high cost-effectiveness, greatly reducing initial investment and operating costs and improving economic benefits.

Located in China, our dyeing machine factory has become a global leading dyeing equipment production base with 10 years of professional accumulation. We not only provide standard models of dyeing machines, but also customize personalized equipment according to customer needs to ensure that each machine can perfectly match the production line. Our factory uses advanced manufacturing technology to produce economical and efficient dyeing machines, helping customers improve production efficiency and reduce operating costs.

The rope dyeing machine is a normal temperature and pressure dyeing machine. It is a kind of equipment used to process fabric dyeing. It is particularly suitable for dyeing thin silk, wool fabrics, cotton and other fabrics that are suitable for dyeing processes below 100 degrees Celsius.

Working principle of atmospheric dyeing machine: fabric is sewn into rope shape and immersed in dye tank, and dye is circulated by main pump to ensure uniformity and stability. Fabric is circulated in tank by conveying system, and dye is evenly penetrated by spraying or soaking. Time, temperature and concentration are controlled to achieve dyeing effect. Finally, fabric is rinsed to remove excess dye and fix the color. The whole process is automated, efficient and environmentally friendly.

Parameter (Specification)

Dyeing capacity:	customized
Liquid ratio:	1:10-1:20
Lifting speed:	60-70m/min
Dyeing temperature:	<100℃
Vapor pressure:	0.3-0.5Mpa

Feature And Application

The rope dyeing machine, operating under normal temp and pressure, excels in coloring delicate silks, wools, and cottons suited for sub-100°C treatments. Its principle involves fabric, looped like a rope, circulating in the dye bath. A main pump circulates dye for even coverage. Automated systems spray or soak the fabric, controlling time, temp, and dye concentration for a consistent finish. Post-dyeing rinse removes excesses, fixing vibrant colors in an eco-friendly, streamlined process.

Specification

Model	Capacity	Liquor	Power	Dimensions Unit（mm）
HSNT-R	KG	Ratio	KW	L	W	H
R-50	20-50	1:10-20	5.65	1900	2400	2500
R-150	100-150	1:10-20	6.8	2620	4160	3325
R-250	200-250	1:10-20	8.62	3550	4670	4000
R-500	400-500	1:10-20	15.22	4550	4670	4000
R-1000	800-1200	1:10-20	29.32	6550	4670	4000
